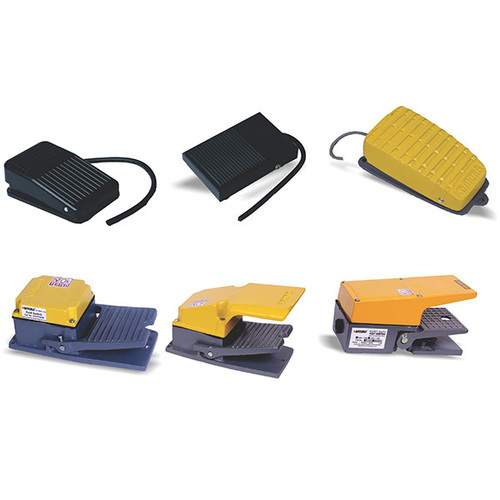

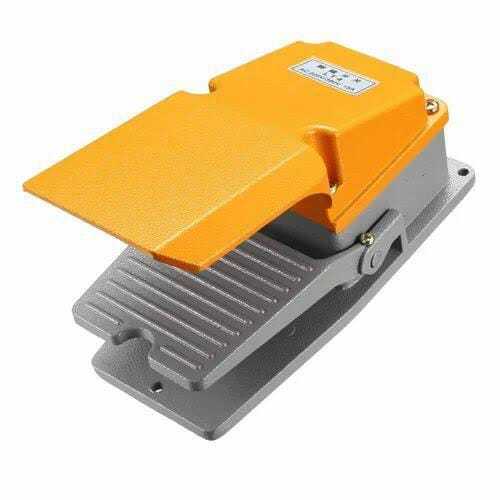

FOOT PADLE SWITCH

Product Description

• Model: LT4
• Contact Type: SPDT (Single Pole Double Throw) with both Normally Open (NO) and Normally Closed (NC) contacts.
• Electrical Rating: Typically rated for 15 Amps at 250V AC or 380V AC.
• Operation Mode: Momentary (the switch is active only while the pedal is pressed and resets once released).
• Durability: Built with a high-strength aluminum alloy casing. It is designed for industrial longevity, often rated for up to 1,000,000 mechanical cycles and 300,000 electrical cycles.
• Protection Level: Often rated at IP62 or IP65, making it resistant to dust and water splashes common in workshop environments.




The working principle of this switch is similar to an electric switch. This switch includes two contact points and the wires of this switch are simply connected to the circuit in a device.

When Normally Open (NO) contacts within the switch are not getting connected, then the circuit in the device is not connected, so the device will be turned OFF. Once this footswitch is compressed then two contacts will be closed so the electric circuit will be connected and the machine will be turned ON.

When Normally Closed (NC) contacts within the switch are closed, then the circuit in the device is connected until the switch is compressed so it breaks the circuit & the machine will be turned OFF.
